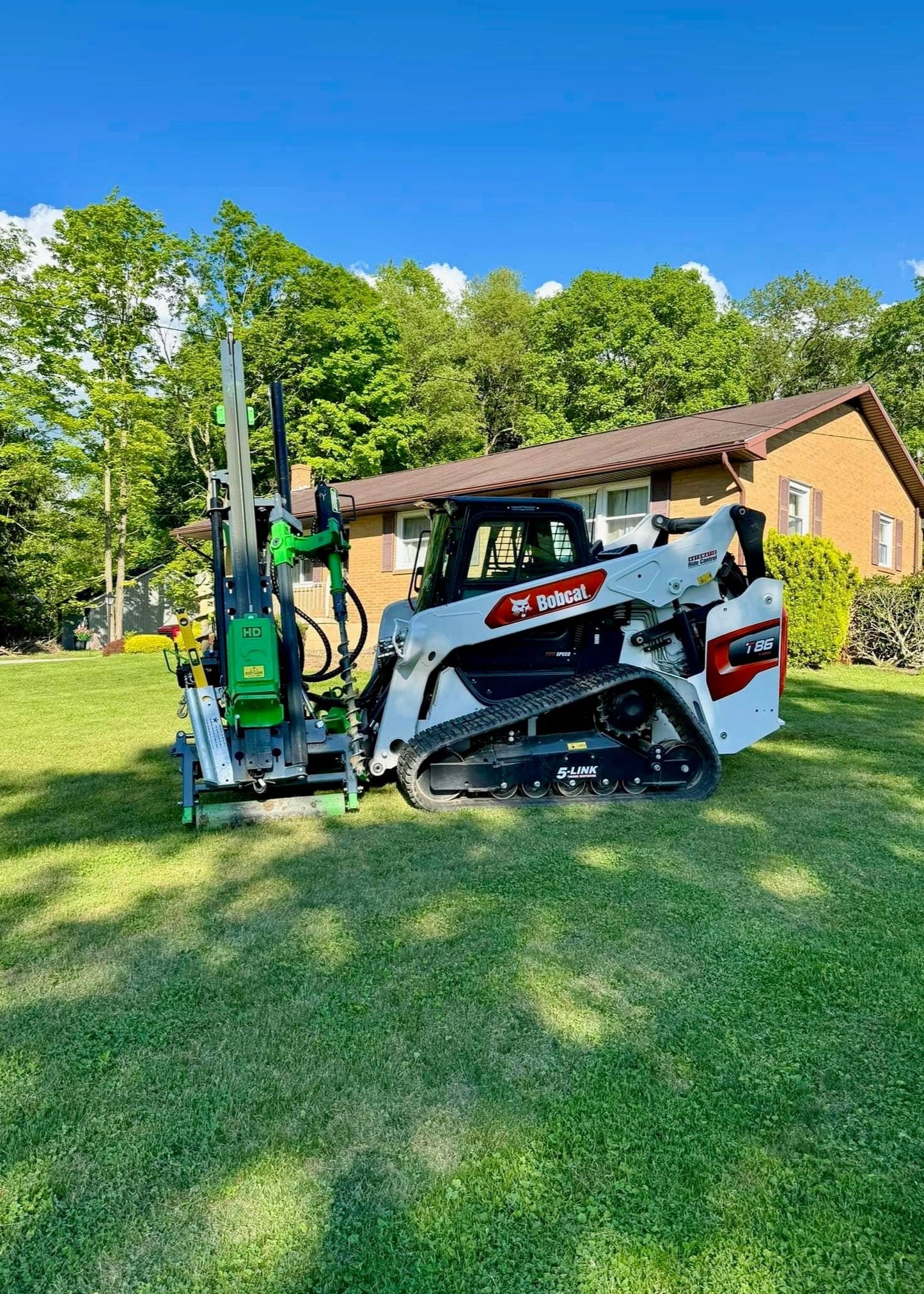

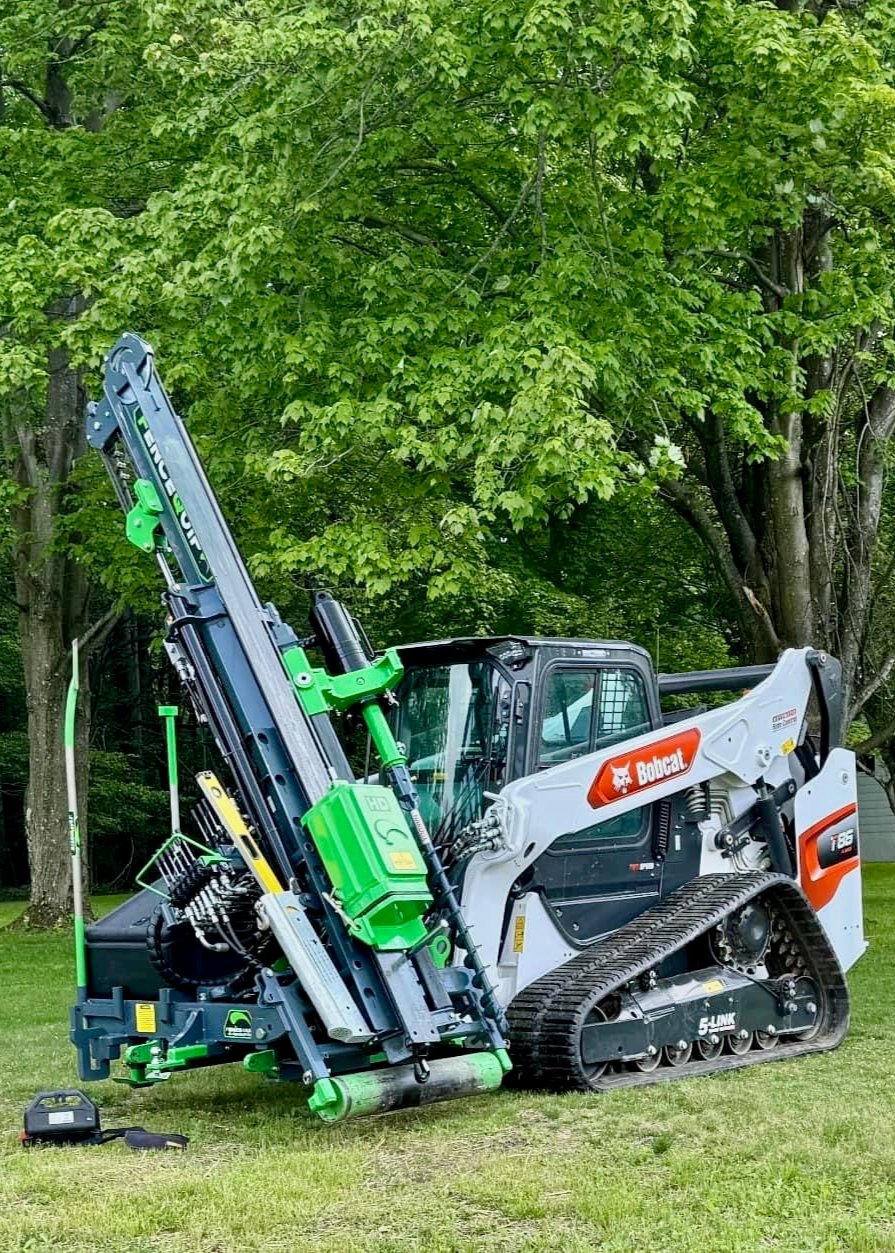

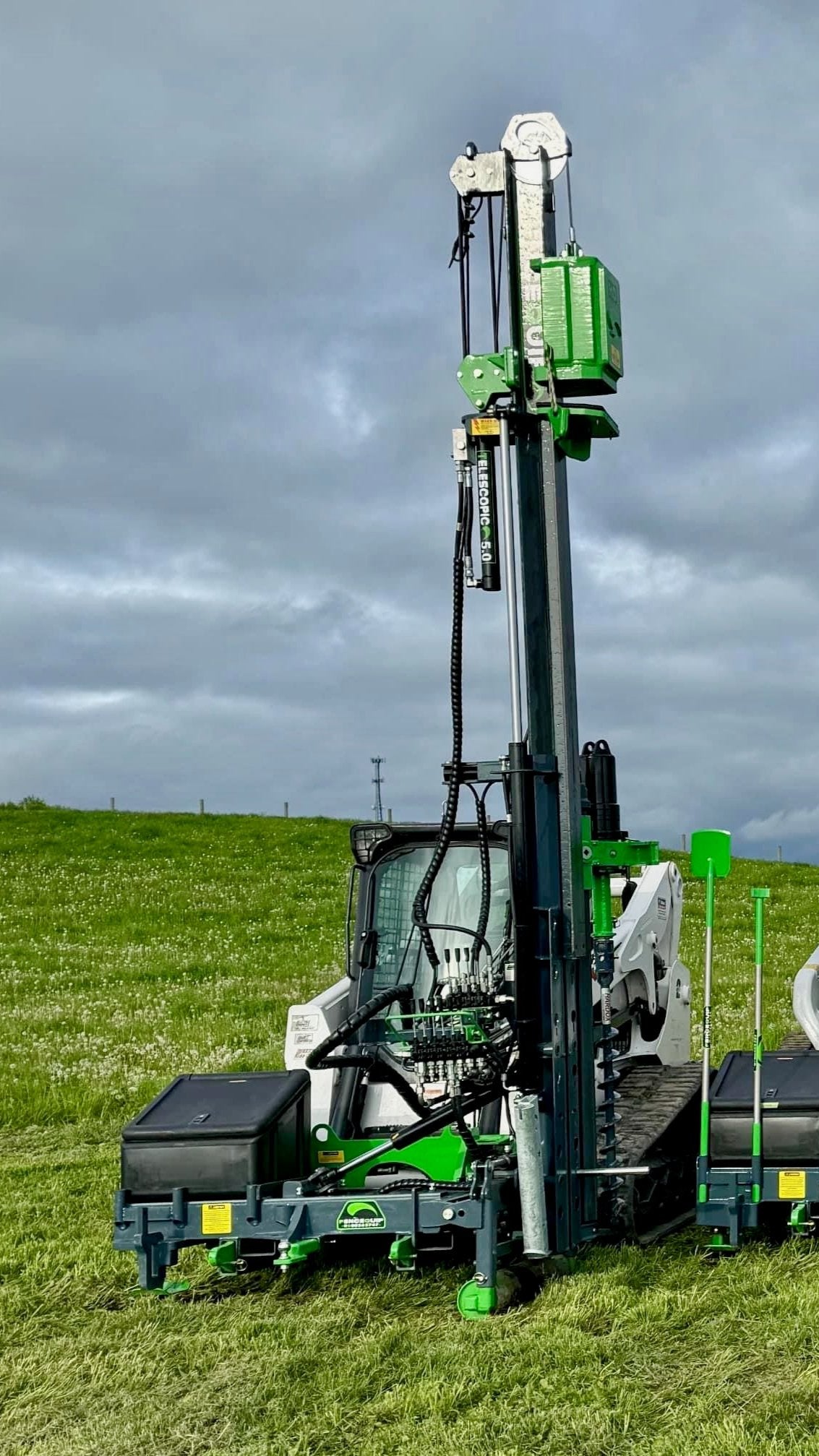

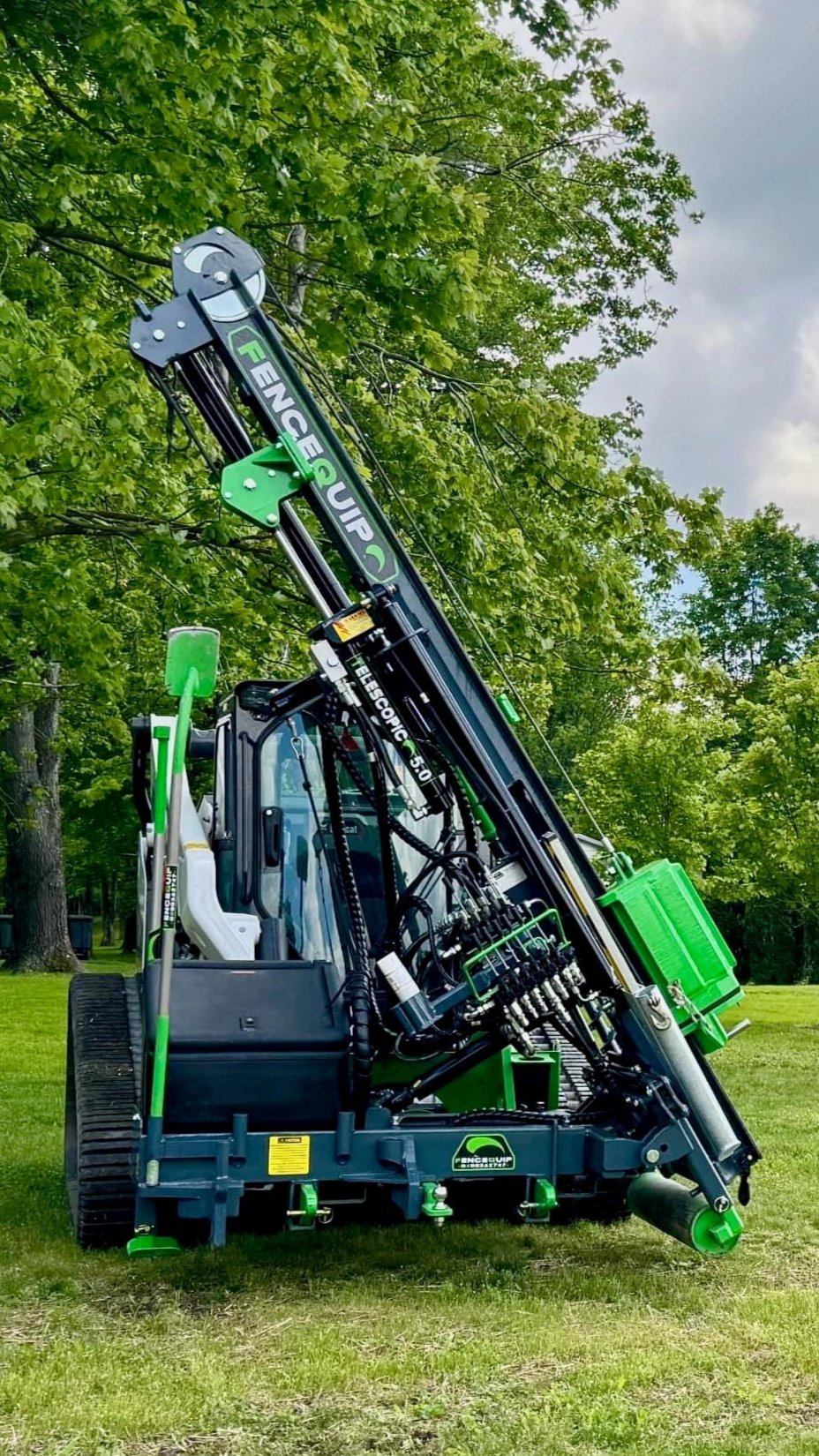

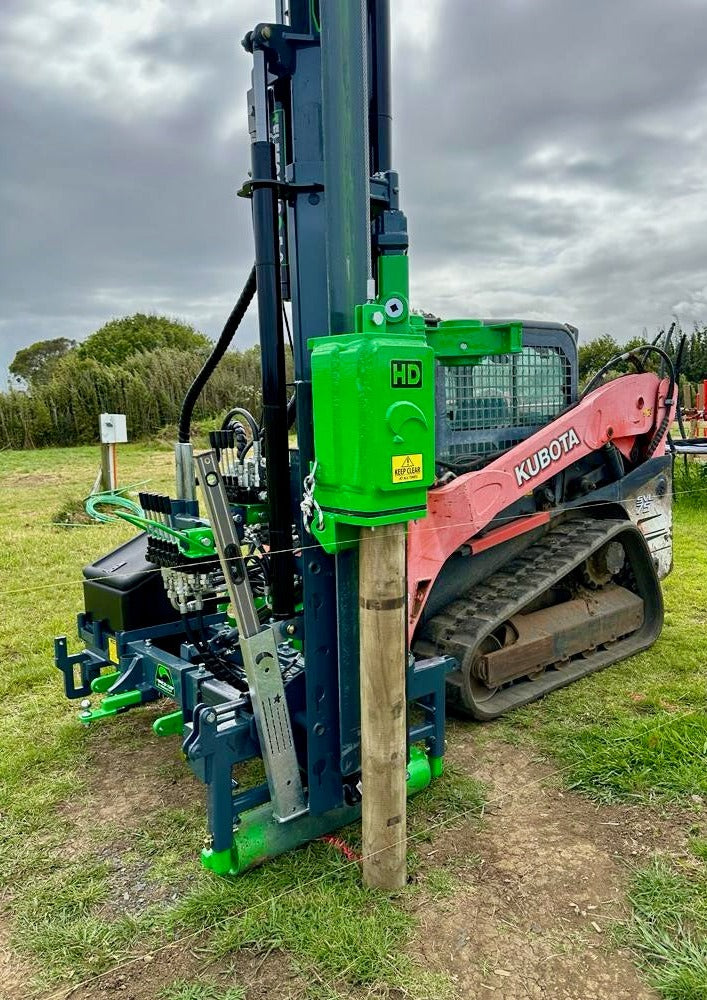

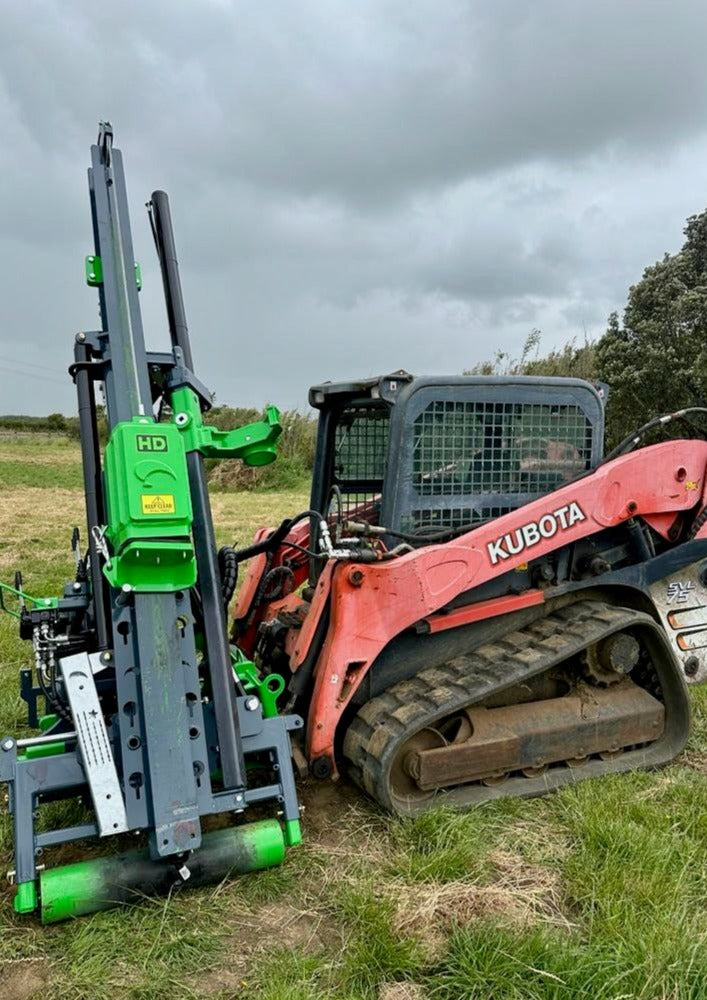

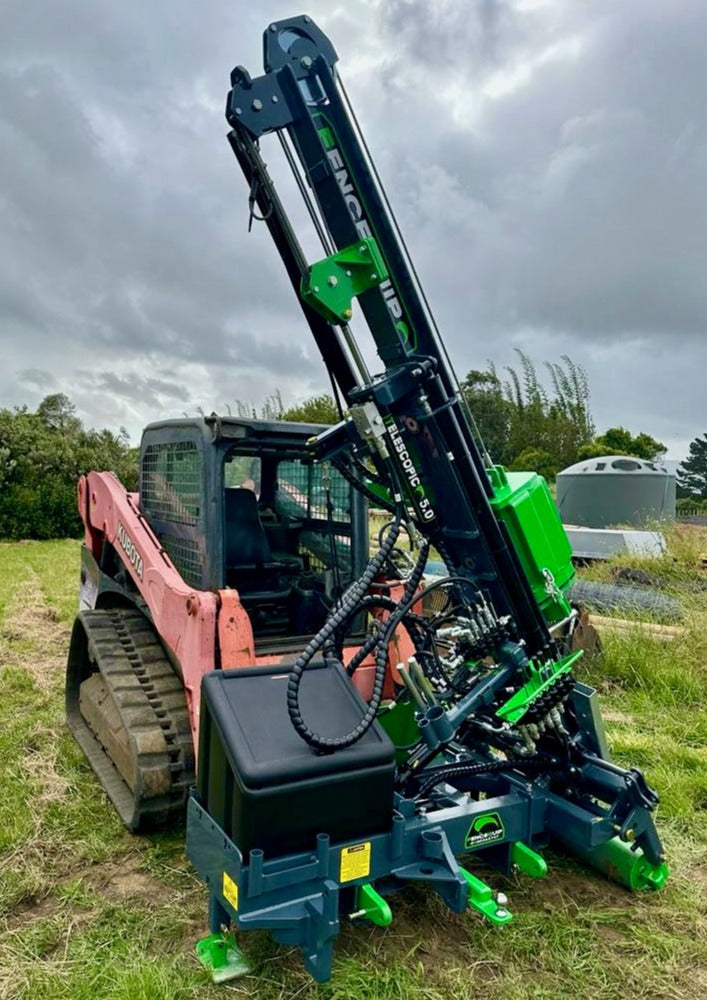

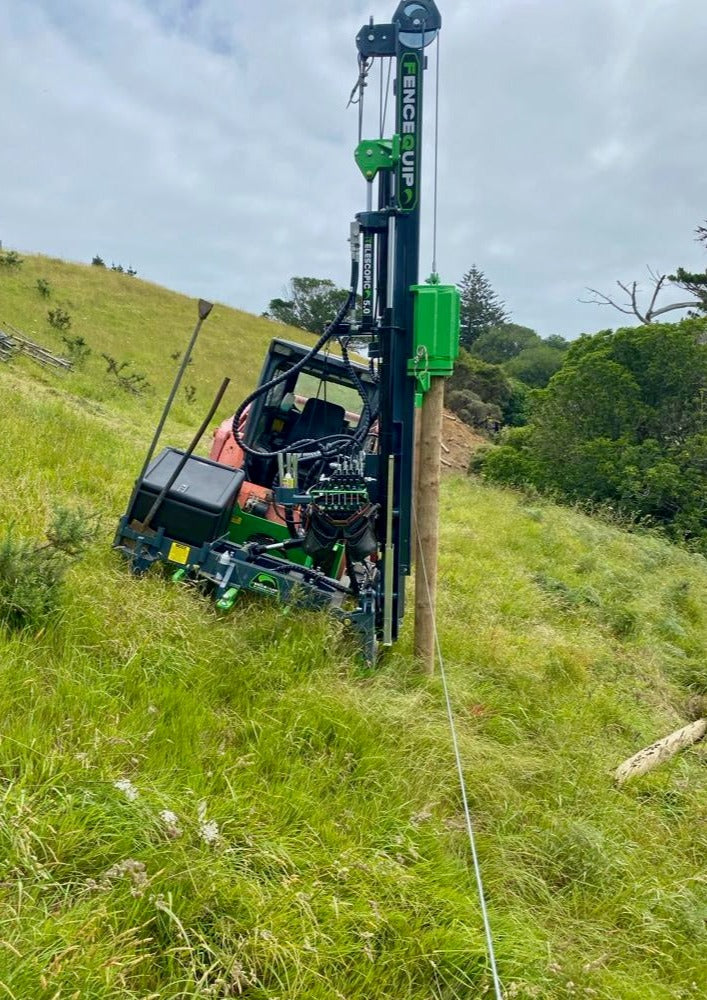

USA Skid Steer Package - Telescopic 595

Telescopic 595 -  for 75hp Skid Steers

The Telescopic 595 is the lighter version of the HD Telescopic 770 and is designed for small Skid Steers.

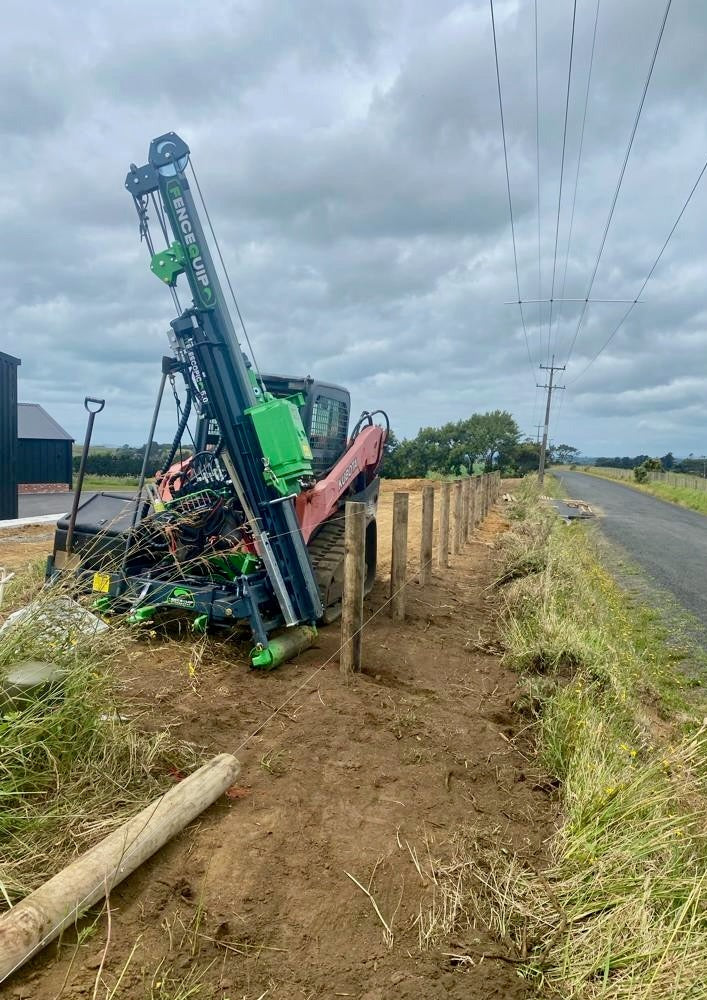

Perfect for working under power lines and trees.

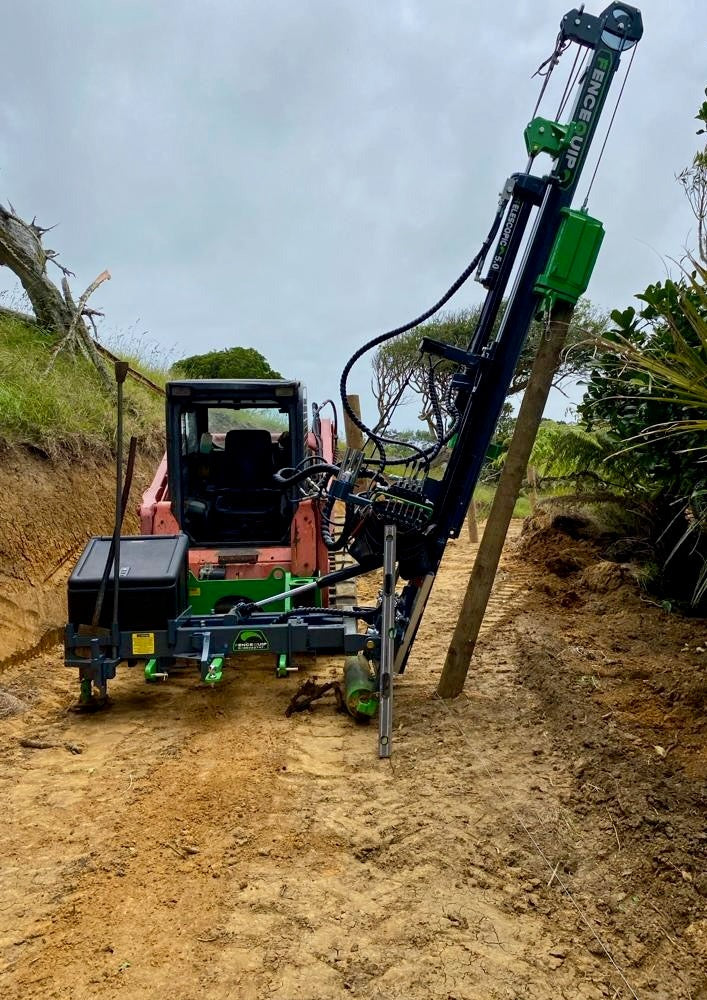

It has an independent Rock Spike / Drill Ram allowing you to Rock Spike or Drill without lifting the Mast up.

For high strength the Mast includes high tensile Hardox® and Strenx® Steel from Sweden.

The HD Telescopic has a recycling Lift Ram system meaning it does not require a high flow HYD return.

The Post Driver/Side Mount is attached with a set of quick hitch Skid Steer forks that enables the user to pick up the Post Driver/Side Mount from either side or the rear of the machine and has 27 1/2” of travel in all three positions.

Telescopic 595 Features Include:

• Telescopic 11’ 9” - 16’ 6” Mast with adjustable/ replaceable Nylon Slides (12‘ 6“ Post Height)
• 16” Mast Shift with Nylon Slides
• 27 1/2” Side Shift
• 3/8” Wire Rope
• 595lbs Hammer with Nylon Slides
• Built in High Country Twin Guides & Pins
• Leg Roller

• MD Rock Spike Unit
• 4 & 6 Bank Hydraulic Valves
• Heavy Duty Chromoly Top Link
• 60° Top Link Angle
• 55° Side Tilt Angle
• Grease-able Pins
• 10 1/2” Top Pulley
• 3” Adjustable Main Pin

 Options:

• Auger Motor Head
• 5’ 9” Rock Spikes 3 1/2” & 4 3/4” stroking 5’1”

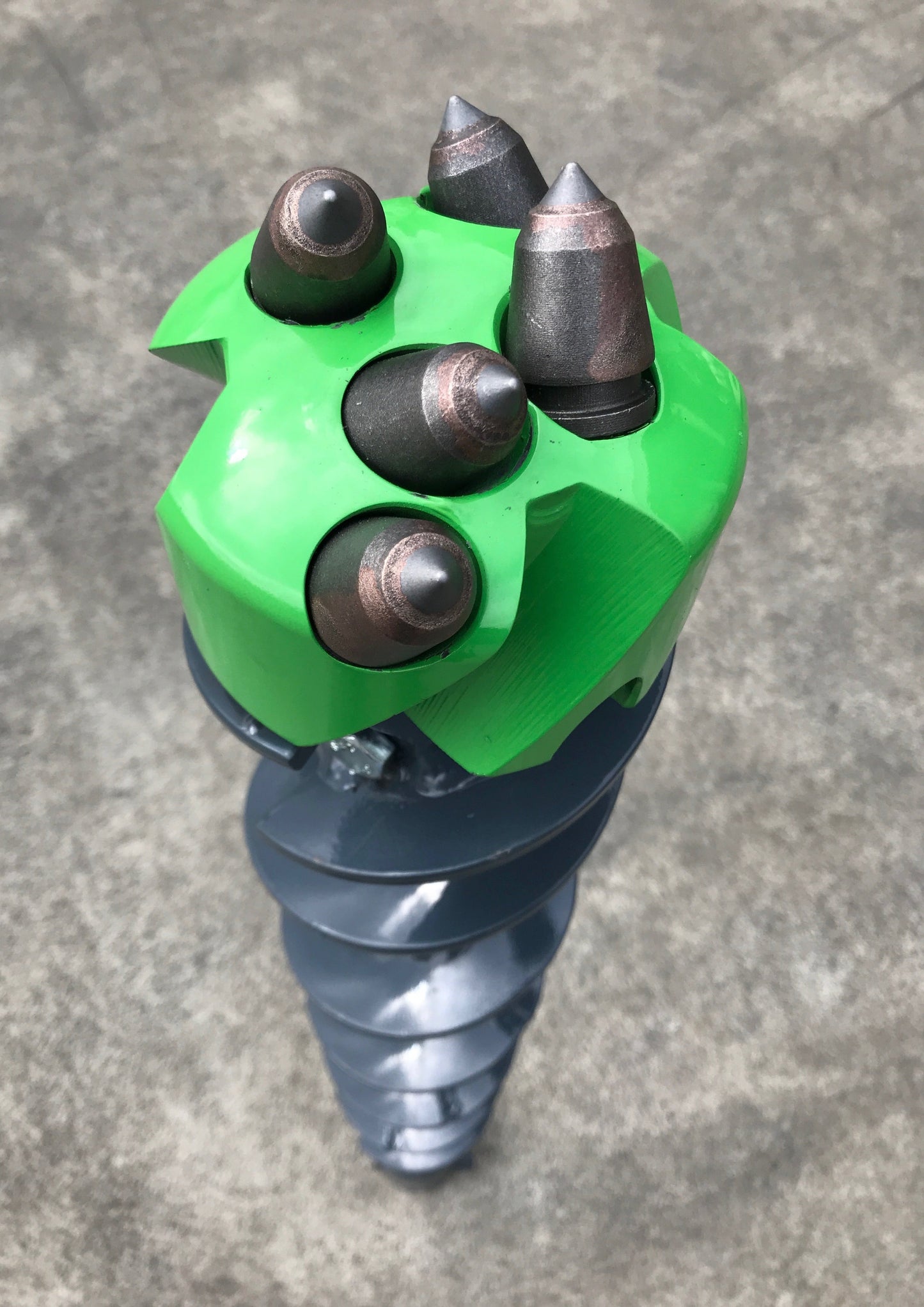

Rock Monster HARDOX Augers

Rock Monster Auger flights are built using 5/16” / 8mm Swedish Hardox® 500

SteelShafts are built from Solid Hardox® 400 Steel

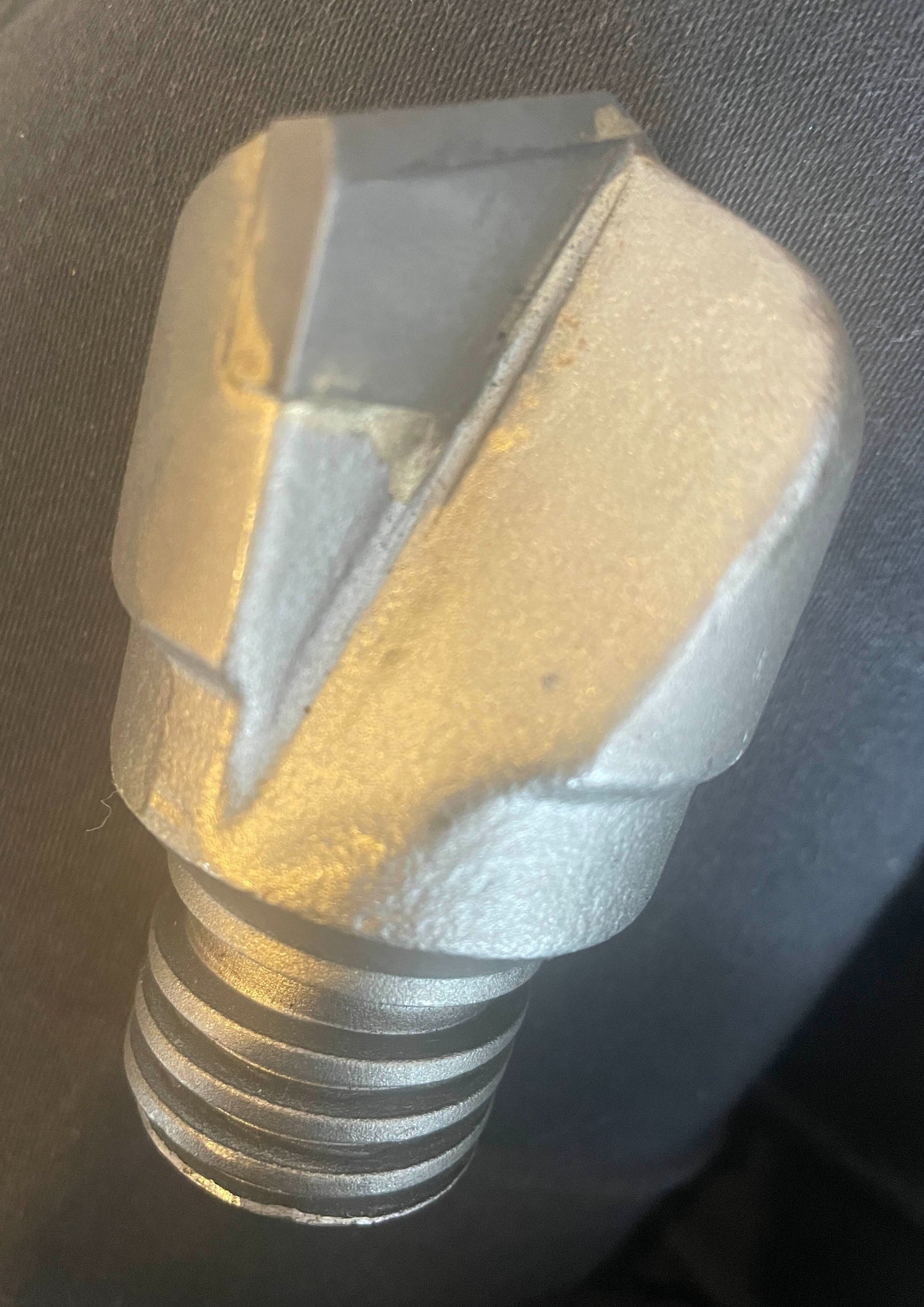

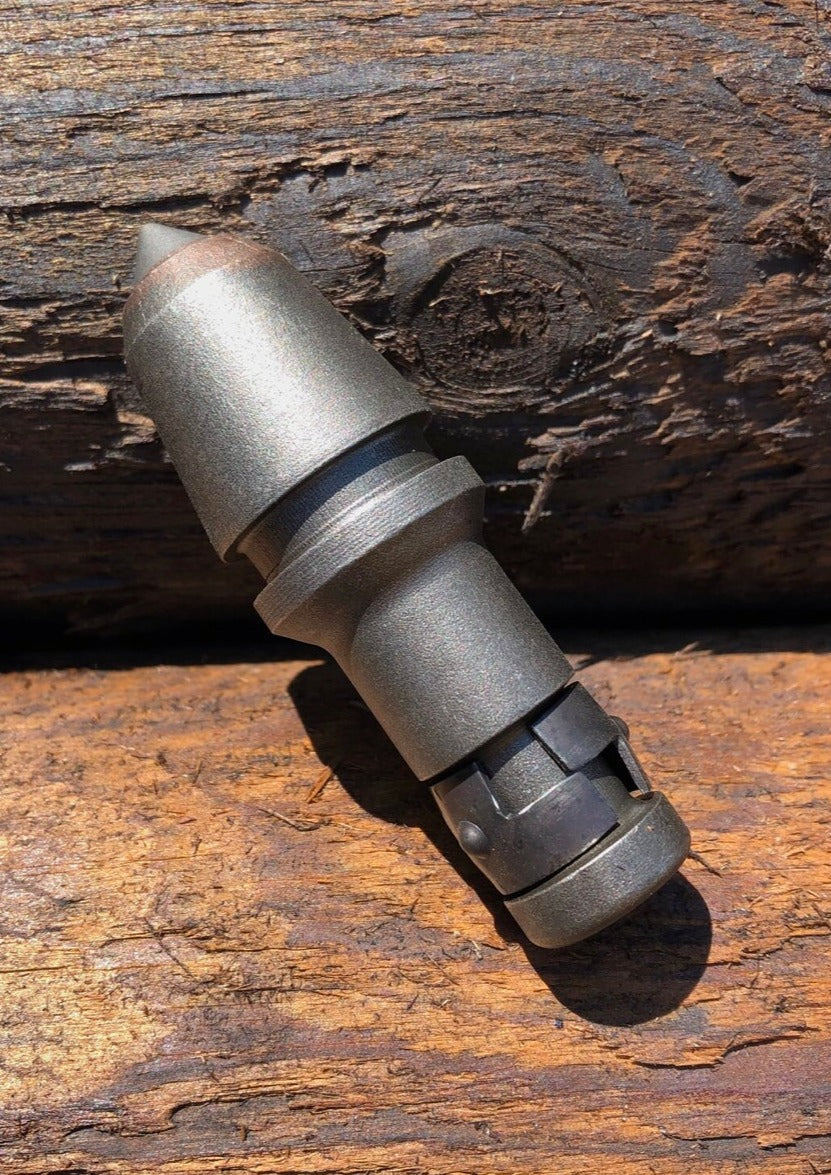

Interchangeable Head with interchangeble Teeth

Double first flight helps to reduce wear

Made to be used in fencing in hard abrasive ground

Hardox in my body® certified - confirms that this product is built using genuine Hardox® wear plate

Sizes available: 3“, 4”, 5“, 6”, 7“, 8”

Raptor also available for hard and compacted soil 4” & 6”
